제품소개

주위의 CO 측정 기기

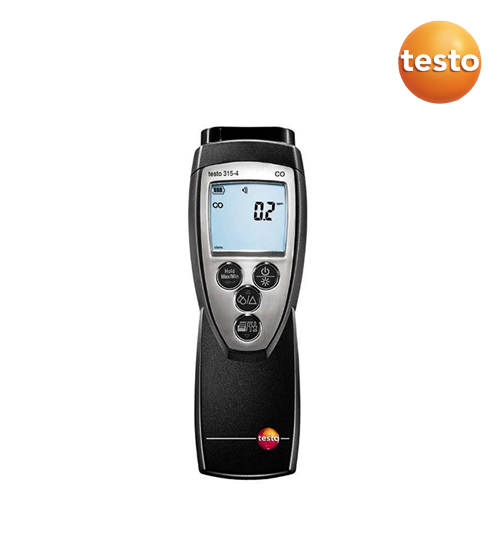

TESTO 315-4

✓ 대기 중 고정밀 일산화탄소 측정

✓ EN 50543에 따라 TÜV 시험 통과

✓ 편리하고 쉬운 작동

✓ 현장에서 데이터 인쇄 가능.

* DIN EN 50543에 따라 대기 중 일산화탄소를 신속하고 정확하게 측정 : testo 315-4 CO 측정기는 작동하기 쉽고 견고한 디자인으로 내구성이 뛰어납니다.

제품 설명
Carbon monoxide (CO) is a colourless, odourless and taste-free gas, but also poisonous. Its sources include the incomplete combustion of substances containing carbon (oil, gas and solid fuels, etc.). This is why it is necessary to regularly check CO emissions at the combustion points of heating systems and surroundings.

testo 315-4 Ambient CO measuring instrument – the features
State-of-the-art technology, easy to use, robust design: the testo 315-4 CO measuring instrument is your reliable partner for measuring carbon monoxide in the ambient air. You can, for example, detect CO in the ambient air around heating systems. There is also the option to measure humidity and temperature in parallel.

You can view the measurement results directly on the digital display. If the individually adjustable limit values are exceeded, the CO measuring instrument emits an optical and acoustic alarm.

The cleverly designed CO measuring instrument with lithium polymer battery ensures energy-saving operation: when not in use, it switches off automatically.

Further advantages of the CO measuring instrument
Depending on your individual practical requirements, you can extend the performance range of the testo 315-4 CO measuring instrument with optional accessories:

✓ TopSafe: the water and dirt-repellent protective case protects the ambient CO measuring instrument even in damp, dirty working environments
✓ testo fast printer: the fast printer prints out measurement results directly on site – e.g. as documentation for the customer. Measurement results are transmitted from the CO measuring instrument to the handy testo fast printer via the wireless infrared interface
✓ Temperature/humidity module: in additional to carbon monoxide, the module also enables you to measure temperature and humidity

상품 제공 시 포함
testo 315-4 CO measuring instrument for ambient measurements, including USB mains unit, cable, calibration protocol.

기술 데이터

작동 습도

0 ~ 95 %RH

무게

200 g

크기

190 x 65 x 40 mm

작동 온도

0 ~ +40 °C

EU가이드라인 준수

2004/108/EG

인터페이스

IR/IRDA인터페이스

보관 기기

Lithium polymer battery pack

보관 배터리 수명

70 h measurement time (at +20 °C/+68 °F) / Mains operation possible

보관 배터리 충전

In instrument via charger

보관 온도

-20 ~ +60 °C

부착식 습도 모듈 - 용량성

내장 습도 모듈 측정 범위

+5 ~ +95 %RH

내장 습도 모듈 정확도

±25.0 %RH (5 ~ +95 %RH)

내장 습도 모듈 분해능

0.1 %RH

CO측정값

CO 측정 범위

0 ~ 100 ppm

CO 정확도

±3 ppm < 20 ppm

±5 ppm > 20 ppm

CO 분해능

0.5 ppm

측정 데이터

측정 범위

-10 ~ +60 °C

정확도

±0.5 °C (±1 Digit)

분해능

0.1 °C
