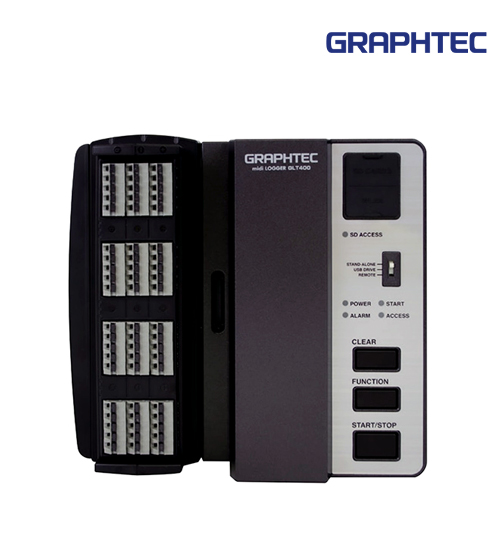

1. PLC 특화 다용도 데이터 로거
GLT 400과 PLC 사이 양방향 커뮤니케이션으로 PC로 제어 가능
GL840 데이터로거를 이미 사용하고 계시다고요? - 호환 가능
PC 분석 소프트웨어가 없으시다고요? - 무료 제공
2. 마운팅 타입 (장착형)
장착형 단말 장치이며 채널 확장 및 연결 시, 탈착이 간편하고 정면 방향의 터미널은 엄청난 편리성을 제공합니다.

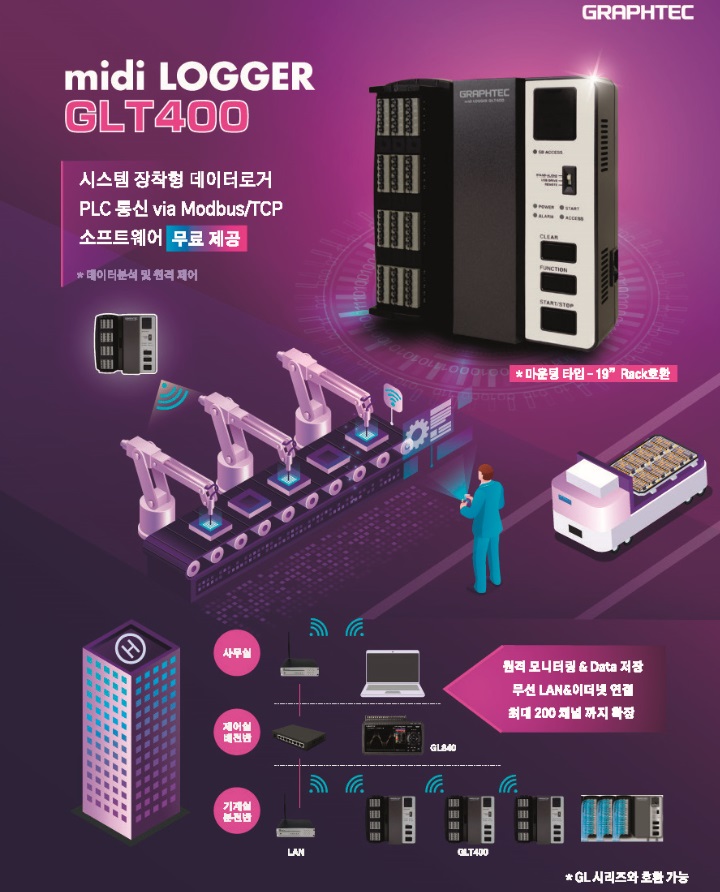

3. GL840 데이터로거의 단말 장치로 연결
장비의 사용 거리가 멀어도 이더넷 또는 무선 호환 / 최대 200채널까지 확장으로 추후 계획 대비 가능
| Item | Description | |
|---|---|---|
| Number of analog terminal units | Up to 10 units (200CH) | |
| Analog terminal unit type | Standard terminal, Withstand high-voltage high-precision terminal, Screwless terminal | |
| Sampling speed | 10msec to 1 hour (Only voltage:10ms to 50ms with limited channels), External (Able to select at only “STAND ALONE” mode) (*1) | |
| Trigger, Alarm function | Repeat Trigger | Off, On |
| Trigger types | Start: Data capture starts when a trigger is generated. Stop: Data capture stops when a trigger is generated. | |
| Trigger conditions | Start: Off, level value, alarm, external input, specified time, specified day of the week, certain time Stop: Off, level value, alarm, external input, specified time, specified day of the week, certain time | |
| Alarm judgment modes | Combination: Analog, Logic or "AND" / "OR" of pulse Analog judgment: H (↑), L (↓), Window In, Window Out Logic judgment: Pattern Pulse judgment: H (↑), L (↓), Window In, Window Out | |
| Operation of the alarm output function | Alarm Lamp on device, Email Alarm Notification, Alarm Output (4channels ("REMOTE" 1 channel only)) | |
| Alarm output Yes (hold function) | Yes | |
| External input / output (*1) | Input type | Trigger input (1 ch) or External sampling input (1 ch), Logic input (4 ch) or Pulse input (4 ch) (Only when the GLT400 is set to STAND-ALONE) |
| Input specifications | Input voltage range : 0 to +30 V (single-ended ground input) Input signal: No-voltage contact (a-contact, b-contact, NO, NC), Open collector, Voltage input Input threshold voltage: Approx. +2.5 V Hysteresis: Approx. 0.5 V (+2.5 to +3 V) * Switch between Logic and Pulse. Switch between Trigger and External sampling. | |
| Output type | Alarm output (4 ch) (Only 1 ch when the GLT400 is set to REMOTE) | |
| Alarm output specifications | Output format: Open collector output (5 V, pull-up resistance 10 kΩ) • Collector-GND voltage : 50 V • Collector current: 2 A • Collector dissipation: 0.3 W | |
| Pulse input | Revolutions mode | This mode counts the number of pulses per sampling interval, and then converts them by multiplying the scaling factor to the RPM. Settable the number of pulses per revolution during revolution Spans: 50, 500, 5000, 50 k, 500 k, 5 M, 50 M, 500 M RPM/F.S. |
| Counts mode | Displays a count of the number of pulses for each sampling interval from the start of measurement. Spans: 50, 500, 5000, 50 k, 500 k, 5 M, 50 M, 500 M C/F.S. | |
| Inst. mode | Counts the number of pulses for each sampling interval. Resets the count value after each sampling interval. Spans: 50, 500, 5000, 50 k, 500 k, 5 M, 50 M, 500 M C/F.S. | |
| Maximum number of pulse inputs | Maximum input frequency: 50 kHz Maximum number of count: 50 kC/sampling (16-bit counter) | |
| Calculation between CHs | Calculation type | Four arithmetic operations (+, –, ×, ÷) |
| Target input | Analog CH1 to CH200 | |
| Scaling function （EU） | • 4 points can be set for each channel • Temperature range scaling function is available: 2 points | |
| Annotation input function | Function | A comment can be entered for each channel |
| Input table characters | Alphanumerics | |
| Number of characters | 31 | |
| PC I/F | Interface types | Ethernet (10BASE-T/100BASE-TX), USB 2.0, Wireless LAN (Option) |
| Functions | Setup and control of the GLT400 from PC, Data transfer to the PC, Connect to network as a remote terminal unit of GL840 | |
| Ethernet functions | Web server functions, FTP server function, FTP client function, NTP client function, DHCP client function, DHCP server function, Modbus/TCP Protocol | |
| USB functions | USB drive mode: Transfer and delete the captured files in the internal memory or SD CARD | |
| Realtime data transfer speed | 10 msec/1 ch maximum (The transfer speed depends on the number of channels.) | |
| Memory devices | Memory capacity (*2) | Internal memory (MEM): approx. 4GB |
| SD CARD slot: 1 (Compatible with SDHC, up to approx. 32GB memory available. The memory format only supports FAT/FAT32. ) | ||
| Memory contents | Setup conditions, Measured data | |
| Data backup function | Backup Interval (*3) | Off, 1, 2, 6, 12, 24 hours, Each file (* Each file can be selected only when the backup destination is set to FTP and the captured file is deleted when the backup of the FTP client settings is activated normally.) |
| Backup Destination (*3) | Internal memory, SD CARD, FTP | |
| Data format (*3) | GBD（Graphtec Binary Data）or CSV | |
| Capture function | Functions | OFF, Ring capturing, Relay capturing |
| Ring capturing | Save most recent data of specified number (Number of capturing points: 1000 to 2000000) * When ring capture is ON, the memory space that can be used for capture is one third of the free space or less. | |
| Relay capturing | The captured data is continuously captured by files separated in the set relay unit without losing data. | |
| Data format | GBD（Graphtec Binary Data）or CSV | |
| Functions during capture | Replacement of the SD CARD | |
| Data save function | Capture destination: Internal memory or SD CARD Captured data: Settings, Screen data, measured data | |
| Operating Environment | -20 to +60°C only when using B-564 or B-564SL input terminals & DC power. 0 to +45°C when using B-565 input terminal or AC Adapter 5 to 85%R.H. (non condensed) (When using the USB PD as the power supply, the spec. is based on power supply requirements.) | |
| Power source | AC Adapter | 100 to 240 V AC, 50/60 Hz |
| DC power | 8.5 to 24V DC (maximum 26.4V) (DC drive cable (option B-514) is required)) | |
| USB PD | USB PD compatible, external USB PD compatible battery (USB Power Delivery Revision 2.0 later) (not supplied) | |
| Power consumption | Max. 24 VA (when using the supplied AC adapter, AC100V) | |
| External dimensions [W×D×H] (approx.) (excluding protrusions) | Standard terminal (B-564) or Screwless terminal (B-564SL) is attached: 187.5 × 183 × 65.5 mm | |
| Withstand high-voltage high-precision terminal (B-565) is attached: 187.5 × 183 × 73.4 mm | ||
| Weight (approx.) (AC adapter is not included) | Standard terminal (B-564) is attached: 1090g | |
| Screwless terminal (B-564SL) is attached: 1020g | ||
| Withstand high-voltage high-precision terminal (B-565) is attached: 1120g | ||
| Others | Vibration: Automobile parts Type 1 Class A equivalent | |
