제품소개

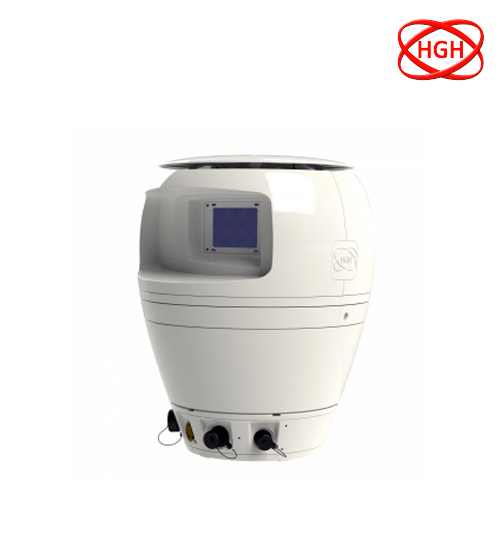

| MODEL | Spynel-U 1000 | Spynel-U 2500 |
| Vertical Field Of View | 18° (-15° to +3°) | 9° (-6.5° to +2.5°) |
| Horizontal Field Of View | 360° | 360° |
| Scanning speed | 0.5 rps (360° / 2sec) | 0.25 rps (360° / 4sec) |
| Infrared detector type | Uncooled LWIR FPA (≥ 600 pixels horizontally) | |
| Infrared image resolution | 5 Mpixels | 10 Mpixels |
| Visible detector type | 2048 x 1536 | |
| Visible image resolution | 50 Mpixels | 100 Mpixels |
| Video output and control | TCP/IP | |
| Dimensions (Diameter x Height) | 400 mm x 500 mm | |
| Weight | 25 kg | |
| Protection standard | IP 66 | |
| Power supply | 24V DC / 10 Amps max at startup | |
| Detection Ranges for : | ||
| • Human | Up to 400 m | Up to 700 m |
| • Car | Up to 900 m | Up to 1,500 m |
| • RHIB | Up to 900 m | Up to 1,500 m |
